ESP32-C6-DevKitC-1 N8 Development Board ESP32 C6 32-bit 8MB SPI Flash ESP32-C6-WROOM-1 Module Supports Wi-Fi BLE Zigbee3.0 Thread1.3

Features: CPU and On-Chip Memory ESP32-C6 embedded, 32-bit RISC-V single-core microprocessor, up to 160 MHz ROM:320 KB HP SRAM: 512 KB LP SRAM: 16 KB Wi-Fi: 1T1R in 2.4 GHz band Operating frequency: 2412～2484 MHz IEEE 802.11ax-compliant Fully compatible with IEEE802.11b/g/n protocol Blue-tooth: BluetoothLE: Bluetooth5.3 certified Blue-tooth mesh High power mod (20dBm) Speed:125Kbps, 500Kbps, 1Mbps, 2Mbps Advertising extensions Multiple advertisement sets Channel selection algorithm#2 LE power control Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna IEEE802.15.4: Compliant with IEEE802.15.42015 protocol OQPSK PHY in 2.4 GHz band Data rate: 250Kbps Thread1.3 Zigbee3.0 Peripherals: GPIO, SPI, parallel IO interface, UART, I2C, I2S, RM (TX/RX), pulse counter, LED PWM, USB Serial/JTA Gcontroller, MCPWM, SDIO2.0 slave controller, GDMA, TWAI controller, on-chip debug functionality via JTAG, event task matrix, ADC,temperature sensor,general-purpose timers, watchdog timers, etc. Integrated Components on Module: 40 MHz crystal oscillator SPI flash Applications: Smart Home Pos machines Industrial Automation Service robot Health Care Audio Devices Consumer Electronics Generic Low-power loT Sensor Hubs Smart Agriculture Generic Low-power loT Data Loggers Package includes: 1 X ESP32-C6-DevKitC-1 N8 development board

• ESP32-C6-DevKitC-1 is an entry-level development board based on ESP32-C6-WROOM-1, integrates complete Wi-Fi, Blue-tooth LE, Zig-bee, and Thread functions, supports 2.4 GHz Wi-Fi 6 (802.11 ax), Bluetooth5(LE), Zigbee3.0 and Thread1.3 (802.15.4)
• Built around ESP32-C6 series of SoCs, 32-bit RISC-V single-core microprocessor, comes with a 8 MB SPI flash, uses on-board PCB antenna

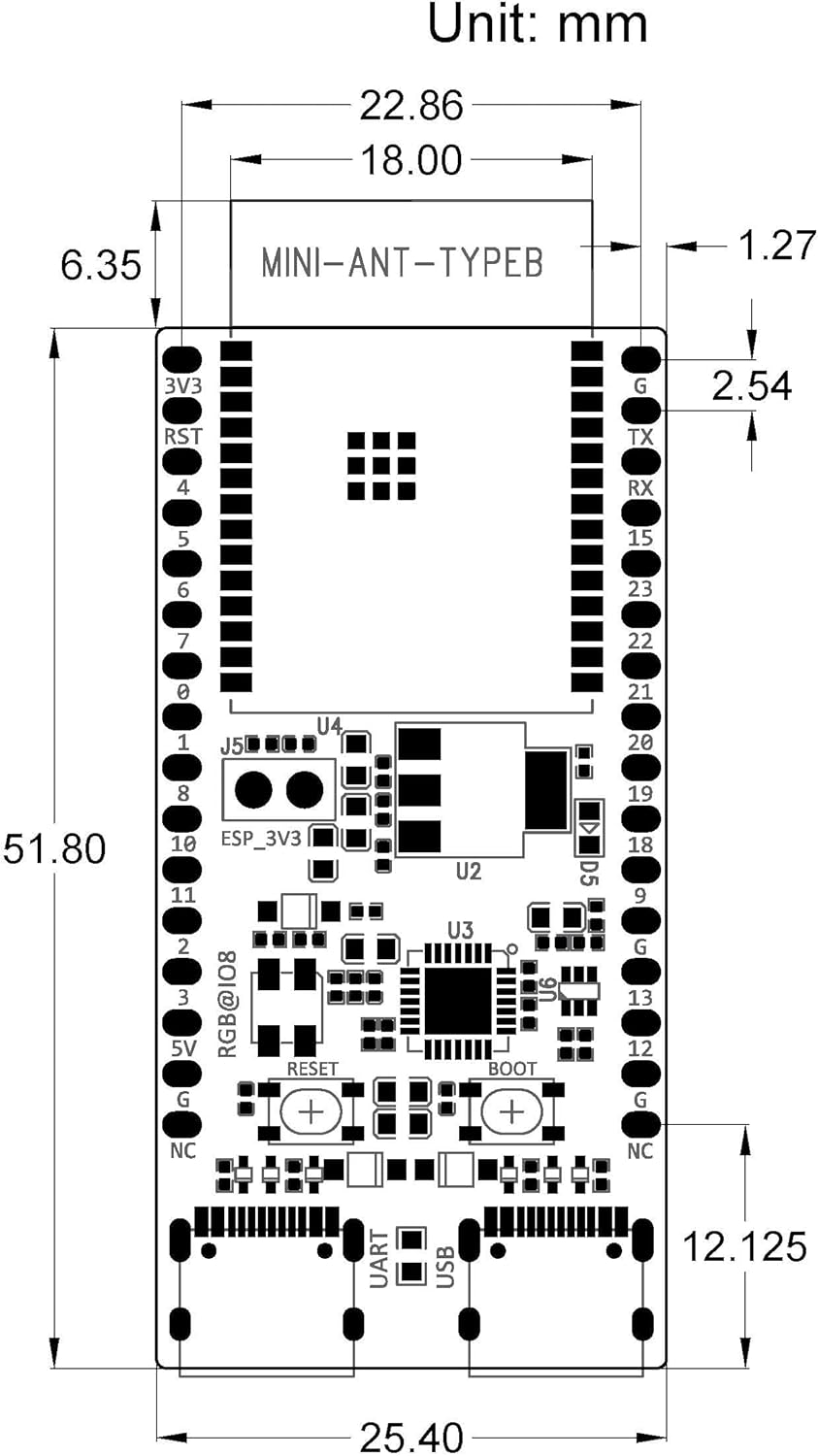

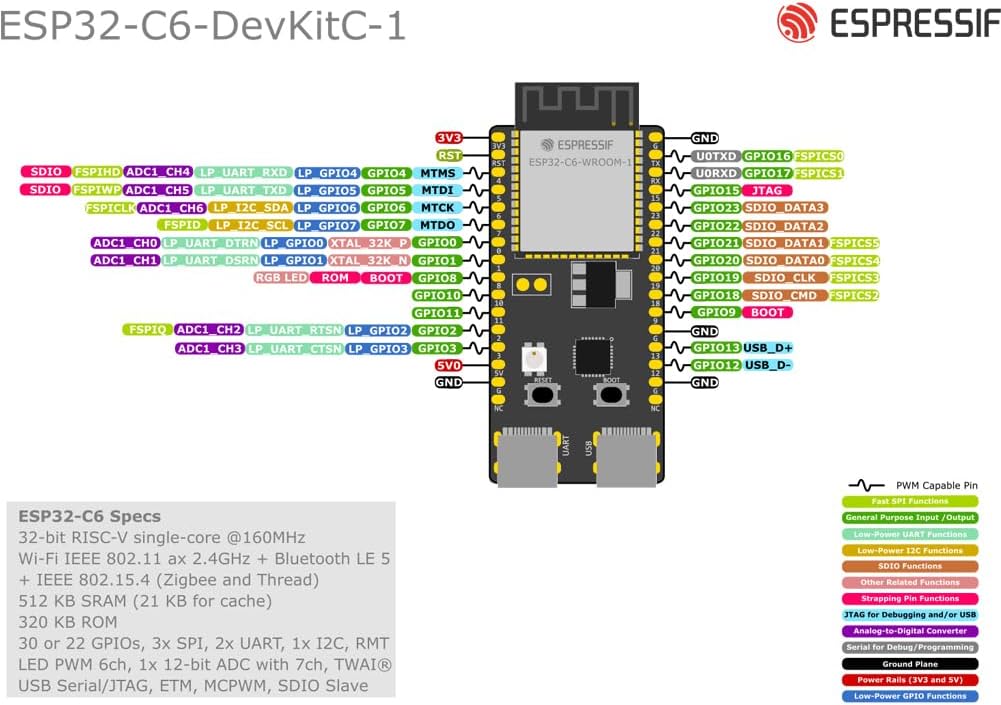

• Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard
• There are three mutually exclusive ways to provide power to the board: ① USB Type-C to UART Port and ESP32-C6 USB Type-C Port (either one or both), default power supply (recommended) ② 5V and GND pin headers ③ 3V3 and GND pin headers
• Applications: Smart Home, Pos machines, Industrial Automation, Service robot, Health Care Audio Devices, Consumer Electronics, Generic Low-power loT Sensor Hubs, Smart Agriculture, Generic Low-power loT Data Loggers
• What you will get: 1 X ESP32-C6-DevKitC-1 N8 development board
