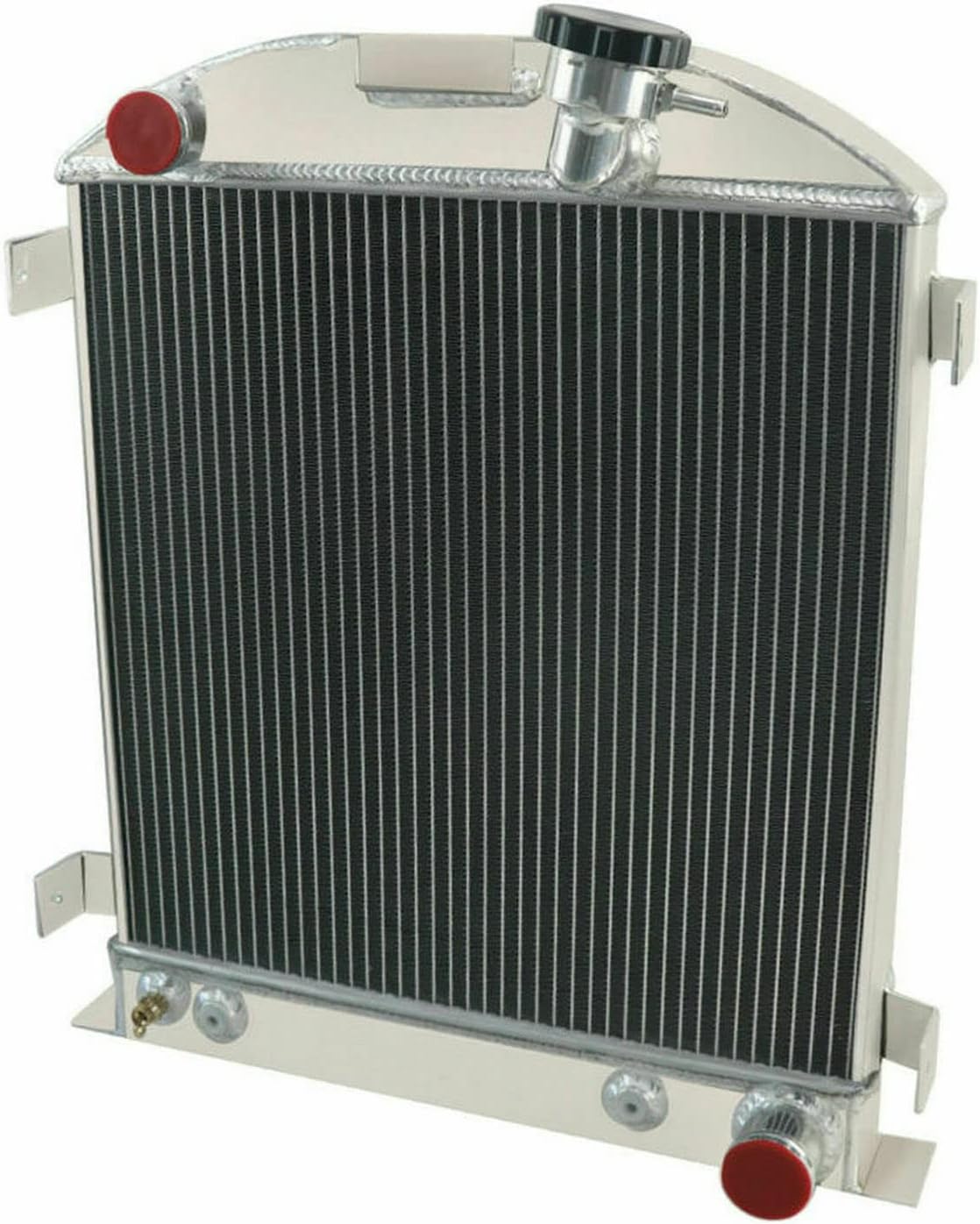

Aluminum Radiator 3 Row for 1928-1931 Ford Model A 3.3L L4 GAS Engine, 1929 1930 Downflow Radiators with Electric Fan Shroud Thermostat Kit

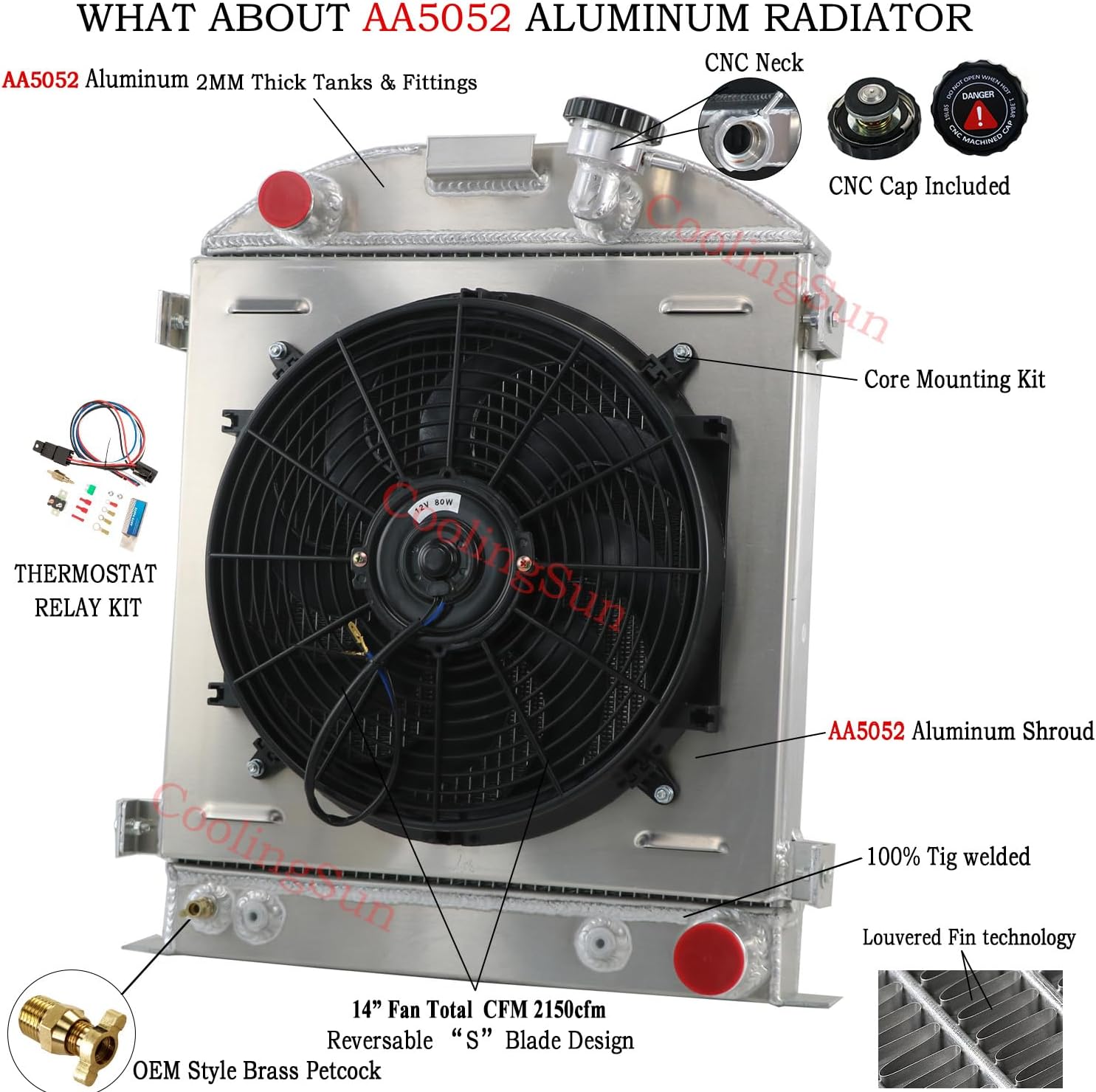

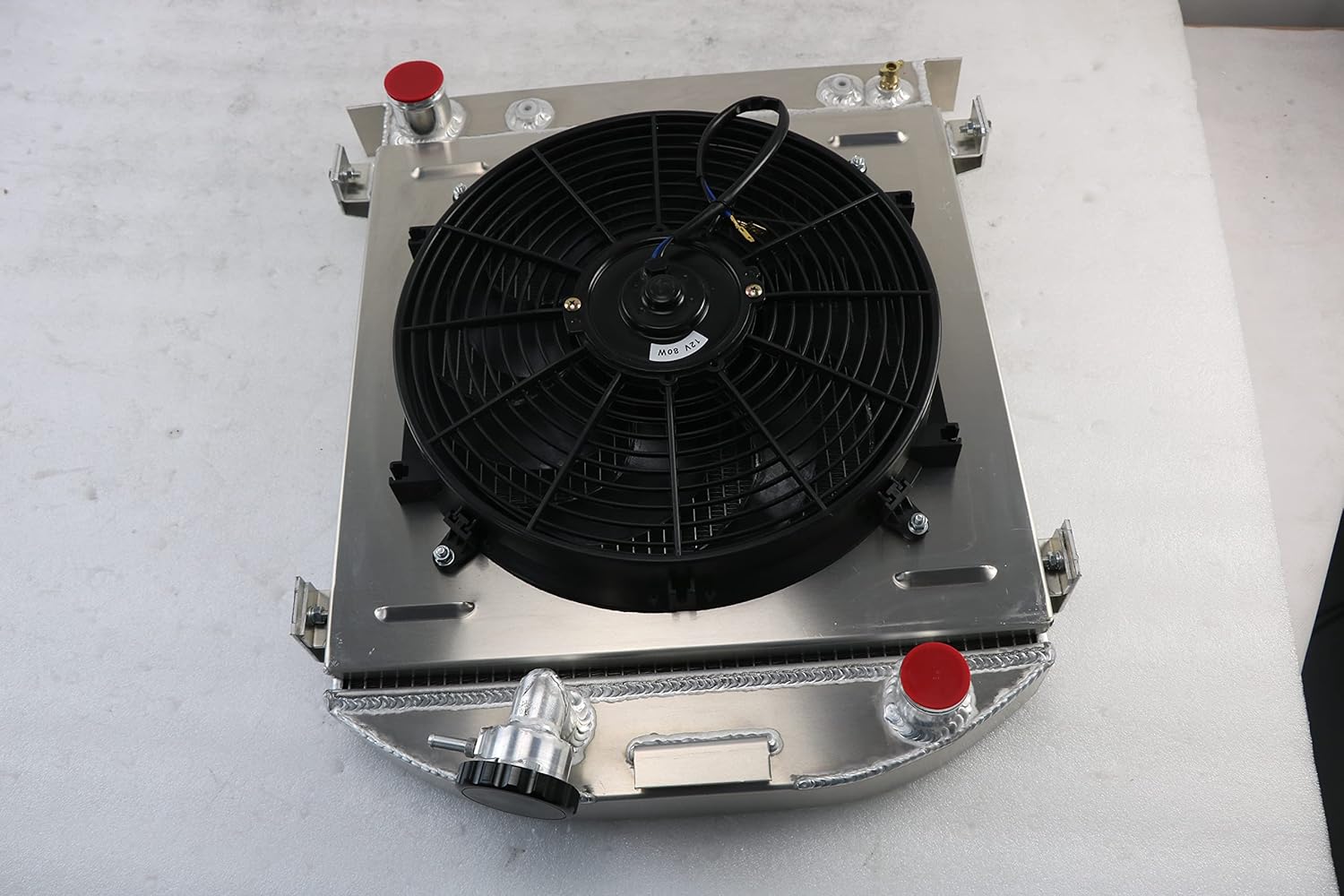

MotoCooling Radiators: Thin Aluminum Fins: Overall durability & corrosion-free property Fan Shroud: Help shield the radiator from the engine heat, increases and directs the airflow. Electric Fan: Save horsepower, be mounted directly, be automatically controlled by a thermostatic temperature switch Compatible with: 1928-1931 Ford Model A 3.3L L4 GAS Radiator Details: Type: 3 Core Core Thickness: 1.73" Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain With Transmission Cooler Delivery: Local Delivery Fitment Type: Direct Replacement Performance: Up to 30%-45% Cooling Part Number: 1009,CC1009,CU1009,DPI1009,MC1009, AE1009 , EC1009 FAN DETAILS: Maximum Fan CFM: 2200±200 FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 14"Fan (Includes mounting kits) 1 X Thermostat Relay Kit

• Direct fit for 1928-1931 Ford Model A 3.3L L4 GAS
• Core size: 17.04"H x 17.24"W x 1.73"T; Overall size: 22.44"L x 19.68"W x 5.51"T; Inlet/ outlet size: 1.5"/ 1.77"（Measurement standard: the direction of the core strip is high）
• Trans cooler specifications: φ26*250*1/8-27NPT(T)
• Direct OE replacement with drop-in precise fitment and easy installation
• Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality
